Name: Elbows
Brand: Authentic Pipe Fitting manufacturing
SKU: Stainless Steel
Availability: InStock

Call us: +86 17370954995

Elbows

Material：

Angle：

Size：

Radius Ratio：

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Specifications

Alloy Steel

A182 F11 A182 F22 A182 F91 A182 F92

Carbon Steel

A105, A350 LF2

Stainless Steel

304/304L, 316/316L

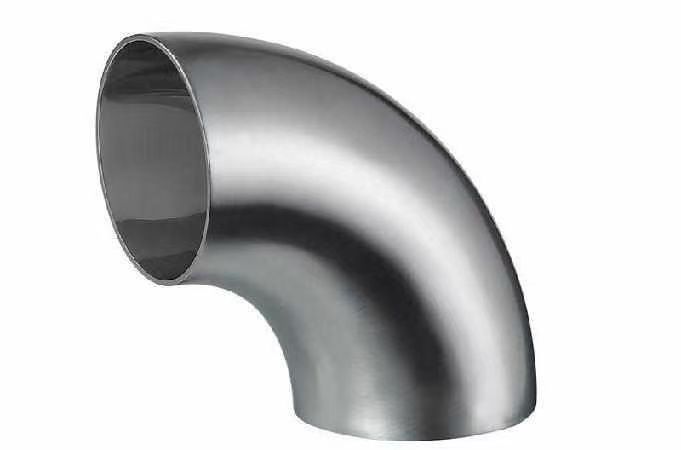

LR & SR Elbows (Butt Welding Elbows)

As one of the most essential components in global piping systems, butt welding elbows are mainly used to change the direction of pipelines, connecting pipes at various angles to meet different layout requirements.

They are mainly divided into Long Radius (LR) and Short Radius (SR) types according to the bending radius. Long radius elbows (1.5D) feature a larger curvature radius, which effectively reduces flow resistance and pressure loss, making them the most widely used in general industrial pipelines. Short radius elbows (1.0D) have a smaller bending radius, suitable for space‑limited installations with low flow resistance requirements.

Our elbows are manufactured in strict compliance with ASME B16.9, MSS SP‑43, API, GB/T 12459 and other international standards. Common angles include 90°, 45°, 180°, covering almost all pipeline turning needs.

Wall thickness is available in various Schedule grades, such as Sch 40, Sch 80, Sch 160, XS, XXS, suitable for low‑pressure, medium‑pressure and high‑pressure working conditions. The ends are usually processed with **Beveled Ends (BE) for butt welding, ensuring high connection strength and good sealing performance.

Widely used in oil and gas, petrochemical, power plants, water treatment, shipbuilding, metallurgy and other fields, these elbows feature stable performance, high pressure resistance, corrosion resistance and long service life.

We provide a full range of butt welding elbows in carbon steel, stainless steel, alloy steel and duplex steel. Custom sizes, angles and materials are available to meet your specific project needs.

FAQ

Q:How do you ensure the quality of your products?

A:First, we are honest manufacturer in China, we have ISO 9001 system certificate, and if you still worry about the quality, you can ask SGS or other 3rd party to inspect before shipment.

Q:Can you accept OEM / ODM orders?

A:Yes, we support OEM & ODM with custom sizes, materials, and marking.

Q:What standards do your fittings follow?

A:Our flanges are usually manufactured to ANSI, DIN, JIS, GOST, ASME B16.5, ASME B16.47, EN 1092-1 and other international standards.

Q:Can I get samples?

A:Yes, we can provide samples for quality checking. Customers usually bear the shipping cost, and sample fees may be refunded after placing a formal order.
